Recipe 7.3 Building a Two-Column Layout

< Day Day Up >

Recipe 7.3 Building a Two-Column Layout

Problem

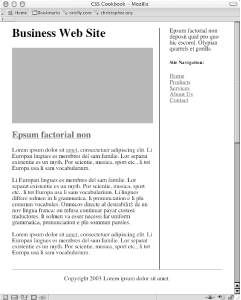

You want to create a two-column layout with columns that resize to the width of the browser, as in Figure 7-4.

Figure 7-4. Two-column layout achieved through CSS

Solution

First, mark up the content with div elements using the id attributes that contain appropriate values (see Figure 7-5).

Figure 7-5. The default rendering of the page

For demonstration purposes the values of the id attributes are used to show where the content is displayed when CSS is used. Semantic values would be preferred, like mainContent or sidebar, instead of using values that represent their placement on the page:

<div id="columnLeft">

 [...]

</div>

<div id="columnRight">

 [...]

</div>

<div id="footer">

 [...]

</div>

Then, in CSS, use the float property to move the contents of the left column to the left, and set a width that is two-thirds the web document's width:

#columnLeft {

 float: left;

 width: 67%;

 background:#fff;

 margin-top: 0;

 margin-right: 1.67em;

 border-right: 1px solid black;

 padding-top: 0;

 padding-right: 1em;

 padding-bottom: 20px;

}

The right column wraps around the contents of the left column. On the right column, set the top of the margin and padding to 0, allowing the column and the first element in it to become level with the left column:

#columnRight {

 padding-left: 2em;

 margin-top: 0;

 padding-top: 0;

}

h1 {

 margin-top: 0;

 padding-top: 0;

}

To display the footer at the bottom of the web document, set the clear property to both:

#footer {

 clear: both;

 padding-bottom: 1em;

 border-top: 1px solid #333;

 text-align: center;

}

Discussion

The float property is similar to the align attribute that is used in HTML to allow text and other elements to flow around an image:

<img src="this.jpg" width="250" height="150" hspace="7" vspace="7"

alt="example" align="right">

Once the image has been set to align to either the right or left, the content around the image flows to the opposite side of the image's alignment. For example, an image aligned to the right forces content to flow around the image on the left side, as shown in Figure 7-6. With CSS, floats provide a similar function, except they offer more exacting control over the presentation by using borders, margins, padding, and other properties.

Figure 7-6. Text wrapping around an image set to right alignment

To make sure the content that comprises the footer is placed at the bottom of the columns, set the clear property to a value of both. When you set the value to both, the browser understands that the content of the footer isn't flowing around the floated left column and positions it below (or past) any floated elements.

The only caveat to this technique for creating a two-column layout is that the content in the left column needs to be longer than the content in the right column. Because the content in the left column appears first in the document, the content in the right column wraps around the left column. Too much content in the column that doesn't float results in the anomaly shown in Figure 7-7.

Figure 7-7. Unwanted wrapping of text under the left column

A method for fixing this problem is to set of the left margin or padding on the right column element so that the column width is at least maintained after the content flows below the float:

#mainColumn {

 width: 400px;

 /* Enough padding to compensate for the left column */

 padding-left: 200px;

}

#navigation {

 float: left;

 width: 175px;

}
