Hack 63. Google from Word

Add a little Google to Microsoft Word.

You probably use Google a few dozen times a day. If you work a lot within Microsoft Word, using Google usually means switching over to your web browser, checking the results, and then going back to Word. This hack will show you how to display the search results in Word's New Document Task Pane.

This hack uses a plain text .ini file to store data and some Visual Basic for Applications (VBA) code that also uses VBScript regular expressions.

This hack will work only with Word 2003 for Windows.

Using Google from Word requires a bit of setup, but once you've installed the appropriate tools, you can use Google from within any Word macro.

5.6.1. Install the Web Services Toolkit

First, install the free Microsoft Office 2003 Web Services Toolkit 2.01. Search for it on the Microsoft web site (http://www.microsoft.com/downloads/) or Google it.

5.6.2. Create a New Template

Next, create a new template to hold your Google-related macros. The Web Services Toolkit will create some code so that you can work with Google. A separate template will help you keep track of the code. Create a new, blank document and save it as a Document Template named GoogleTools.dot.

5.6.3. Install the Google Interface VBA Code

From your new GoogleTools.dot template, select ToolsMacroVisual Basic Editor. The Web Services Toolkit will have added a new item called Web Service References on the Tools menu, as shown in Figure 5-19.

Figure 5-19. Creating a new reference for accessing Google

Select ToolsWeb Service References to display the dialog shown in Figure 5-20. Enter google in the Keywords field and click the Search button. When the web service is found, check the box next to it, and click the Add button.

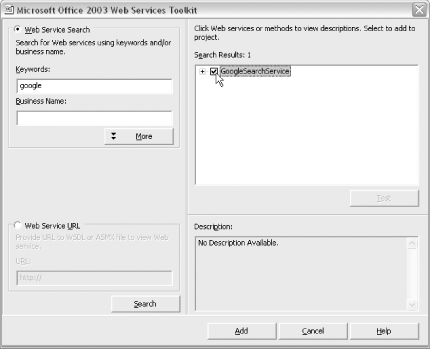

Figure 5-20. Locating the Google search web service

When you click the Add button, you'll notice a flurry of activity on your screen as the Web Services Toolkit installs several new class modules into your template project, as shown in Figure 5-21.

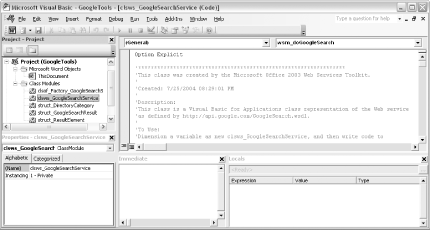

Figure 5-21. The code created by the Web Services Toolkit

The Web Services Toolkit creates the code, but it actually comes from Google using Web Services Description Language (WSDL). The Toolkit interprets this information and generates the VBA code needed to access the web service—in this case, Google.

5.6.4. The Code

With the GoogleTools.dot template you created open, select ToolsMacroMacros and insert the following code, which consists of a procedure named GoogleToTaskPane and a supporting function named StripHTML.

Make sure you replace the value insert key here with your Google API developer's key.

Sub GoogleToTaskPane( )

Dim vSearchResults As Variant

Dim v As Variant

Dim sResults As String

Dim sEntryName As String

Dim sEntryURL As String

Dim sLogFile As String

Dim sSearchDisplayTitle As String

Dim sSearchURL As String

Dim i As Integer



' Google API variables

Dim sGoogleAPIKey As String

Dim sSearchQuery As String

Dim lStart As Long

Dim lMaxResults As Long

Dim bFilter As Boolean

Dim sRestrict As String

Dim bSafeSearch As Boolean

Dim sLanguageRestrict As String

Dim sInputEncoding As String

Dim sOutputEncoding As String

Dim google_search As New clsws_GoogleSearchService



' Initialize variables

sLogFile = "C:\google_taskpane.ini"

sGoogleAPIKey = "insert your key"

lStart = 1

lMaxResults = 10

bFilter = True

sRestrict = ""

bSafeSearch = False

sLanguageRestrict = ""

sInputEncoding = "UTF-8"

sOutputEncoding = "UTF-8"



' Hide the Task Pane

Application.CommandBars("Task Pane").Visible = False



' Remove existing items from New Document Task Pane

For i = 0 To 9

    sEntryURL = System.PrivateProfileString( _

            FileName:=sLogFile, _

            Section:="GoogleTaskPane", _

            Key:="URLName" & CStr(i))

    sEntryName = System.PrivateProfileString( _

            FileName:=sLogFile, _

            Section:="GoogleTaskPane", _

            Key:="EntryName" & CStr(i))

    If Len(sEntryURL) > 0 Then

        Application.NewDocument.Remove _

            FileName:=sEntryURL, _

            Section:=msoBottomSection, _

            DisplayName:=sEntryName, _

            Action:=msoOpenFile

    End If

Next i



' Get new search query

sSearchQuery = InputBox("Enter a Google query:")

If Len(sSearchQuery) = 0 Then Exit Sub



' Get search results

vSearchResults = google_search.wsm_doGoogleSearch( _

        str_key:=sGoogleAPIKey, _

        str_q:=sSearchQuery, _

        lng_start:=lStart, _

        lng_maxResults:=lMaxResults, _

        bln_filter:=bFilter, _

        str_restrict:=sRestrict, _

        bln_safeSearch:=bSafeSearch, _

        str_lr:=sLanguageRestrict, _

        str_ie:=sInputEncoding, _

        str_oe:=sOutputEncoding).resultElements



' Check for no results

On Error Resume Next

v = UBound(vSearchResults)

If Err.Number = 9 Then

    MsgBox "No results found"

    Exit Sub

ElseIf Err.Number <> 0 Then

    MsgBox "An error has occurred: " & _

        Err.Number & vbCr & _

        Err.Description

    Exit Sub

End If



' Add each result to the task pane

' and to the log file

i = 0

For Each v In vSearchResults

    sSearchURL = v.URL

    sSearchDisplayTitle = StripHTML(v.title)

    Application.NewDocument.Add _

        FileName:=sSearchURL, _

        Section:=msoBottomSection, _

        DisplayName:=sSearchDisplayTitle, _

        Action:=msoOpenFile



    System.PrivateProfileString( _

        FileName:=sLogFile, _

        Section:="GoogleTaskPane", _

        Key:="URLName" & CStr(i)) = sSearchURL

    System.PrivateProfileString( _

        FileName:=sLogFile, _

        Section:="GoogleTaskPane", _

        Key:="EntryName" & CStr(i)) = sSearchDisplayTitle

    i = i + 1

Next v



' Show the New Document Task Pane

CommandBars("Menu Bar").Controls("File").Controls("New...").Execute



End Sub



Function StripHTML(str As String) As String

Dim re As Object

Dim k As Long

On Error Resume Next

Set re = GetObject(Class:="VBScript.RegExp")

If Err.Number = 429 Then

    Set re = CreateObject(Class:="VBScript.RegExp")

    Err.Clear

ElseIf Err.Number <> 0 Then

    MsgBox Err.Number & vbCr & Err.Description

End If



' Check for common character entities by ASCII value

For k = 33 To 255

    re.Pattern = "&#" & k & ";"

    str = re.Replace(str, Chr$(k))

Next k



' Remove common HTML tags

re.Pattern = "<[^>]+?>|&[^;]+?;"

re.Global = True

str = re.Replace(str, vbNullString)

StripHTML = str

End Function

This hack uses two parts of the Google search results: the URLs and titles. Google formats the search result title as HTML, but you can only put plain text in the Task Pane. The StripHTML function uses a few simple VBScript Regular Expressions to strip out common HTML tags (such as <b>) and replace character entities (such as @) with their ASCII character equivalents.

It can be tricky to remove files from the Task Pane using VBA unless you know their exact name. This macro, however, stores the search results in a plain-text .ini file. The next time you do a search, you can easily remove the previous results. The macro uses a file named C:\google_taskpane.ini, which is defined in the GoogleToTaskPane procedure.

5.6.5. Running the Hack

After you insert the code, switch back to Word. Next, select ToolsMacroMacros, choose GoogleToTaskPane, and click the Run button to display the dialog shown in Figure 5-22.

Figure 5-22. Entering a Google search that will display in the Task Pane

Enter your search terms and click the OK button. The New Document Task Pane appears and displays the search results, as shown in Figure 5-23. Hover your mouse over any of the entries to display the URL. Click a URL to open the site in your web browser.

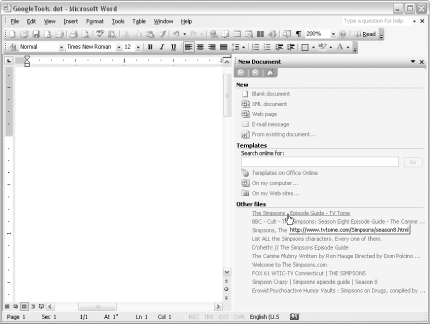

Figure 5-23. Google results displayed in the Task Pane

Every time you run a search, the macro removes the previous results from the Task Pane. If you want to remove the previous results without displaying new ones, click the Cancel button in the dialog box shown in Figure 5-22.

To make sure this handy macro loads automatically when Word starts, put GoogleTools.dot into your Startup folder, typically C:\Documents and Setting\<username>\Application Data\Microsoft\Word\STARTUP\.

5.6.6. Hacking the Hack

To take this hack one step further, you can modify it to use the currently selected text as the search text, rather than displaying an input box and entering text.

The following macro, named GoogleSelectionToTaskPane, does a Google search of the currently selected text and displays the results in the Task Pane. The modified code is shown in bold.

Sub GoogleSelectionToTaskPane( )

Dim vSearchResults As Variant

Dim v As Variant

Dim sResults As String

Dim sEntryName As String

Dim sEntryURL As String

Dim sLogFile As String

Dim sSearchDisplayTitle As String

Dim sSearchURL As String

Dim i As Integer



' Google API variables

Dim sGoogleAPIKey As String

Dim sSearchQuery As String

Dim lStart As Long

Dim lMaxResults As Long

Dim bFilter As Boolean

Dim sRestrict As String

Dim bSafeSearch As Boolean

Dim sLanguageRestrict As String

Dim sInputEncoding As String

Dim sOutputEncoding As String

Dim google_search As New clsws_GoogleSearchService



' Initialize variables

sLogFile = "C:\google_taskpane.ini"

sGoogleAPIKey = your_key_here

lStart = 1

lMaxResults = 10

bFilter = True

sRestrict = ""

bSafeSearch = False

sLanguageRestrict = ""

sInputEncoding = "UTF-8"

sOutputEncoding = "UTF-8"



' Hide the Task Pane

Application.CommandBars("Task Pane").Visible = False



' Remove existing items from New Document Task Pane

For i = 0 To 9

    sEntryURL = System.PrivateProfileString( _

            FileName:=sLogFile, _

            Section:="GoogleTaskPane", _

            Key:="URLName" & CStr(i))

    sEntryName = System.PrivateProfileString( _

            FileName:=sLogFile, _

            Section:="GoogleTaskPane", _

            Key:="EntryName" & CStr(i))

    If Len(sEntryURL) > 0 Then

        Application.NewDocument.Remove _

            FileName:=sEntryURL, _

            Section:=msoBottomSection, _

            DisplayName:=sEntryName, _

            Action:=msoOpenFile

    End If

Next i



' Move ends of selection to exclude spaces

' and paragraph marks

Selection.MoveStartWhile cset:=Chr$(32) & Chr$(19), _

    Count:=Selection.Characters.Count

Selection.MoveEndWhile cset:=Chr$(32) & Chr$(19), _

    Count:=-Selection.Characters.Count



' Get selection text for search

sSearchQuery = Selection.Text

If Len(sSearchQuery) = 0 Then Exit Sub



' Get search results

vSearchResults = google_search.wsm_doGoogleSearch( _

        str_key:=sGoogleAPIKey, _

        str_q:=sSearchQuery, _

        lng_start:=lStart, _

        lng_maxResults:=lMaxResults, _

        bln_filter:=bFilter, _

        str_restrict:=sRestrict, _

        bln_safeSearch:=bSafeSearch, _

        str_lr:=sLanguageRestrict, _

        str_ie:=sInputEncoding, _

        str_oe:=sOutputEncoding).resultElements



' Check for no results

On Error Resume Next

v = UBound(vSearchResults)

If Err.Number = 9 Then

    MsgBox "No results found"

    Exit Sub

ElseIf Err.Number <> 0 Then

    MsgBox "An error has occurred: " & _

        Err.Number & vbCr & _

        Err.Description

    Exit Sub

End If



' Add each result to the task pane

' and to the log file

i = 0

For Each v In vSearchResults

    sSearchURL = v.URL

    sSearchDisplayTitle = StripHTML(v.title)

    Application.NewDocument.Add _

        FileName:=sSearchURL, _

        Section:=msoBottomSection, _

        DisplayName:=sSearchDisplayTitle, _

        Action:=msoOpenFile



    System.PrivateProfileString( _

        FileName:=sLogFile, _

        Section:="GoogleTaskPane", _

        Key:="URLName" & CStr(i)) = sSearchURL

    System.PrivateProfileString( _

        FileName:=sLogFile, _

        Section:="GoogleTaskPane", _

        Key:="EntryName" & CStr(i)) = sSearchDisplayTitle

    i = i + 1

Next v



' Show the New Document Task Pane

CommandBars("Menu Bar").Controls("File").Controls("New...").Execute



End Sub

To help ensure a good Google search, the following two lines collapse two ends of the selection if they contain spaces or a paragraph mark:

Selection.MoveStartWhile cset:=Chr$(32) & Chr$(19), _

    Count:=Selection.Characters.Count

Selection.MoveEndWhile cset:=Chr$(32) & Chr$(19), _

    Count:=-Selection.Characters.Count

Andrew Savikas
