Creating a Custom Login Form

When you use the FORM authentication method, you must supply a login form to prompt the user for a username and password. The login form must contain form elements named j_username and j_password. The action in the <form> tag must be j_security_check. Listing 23.3 shows the HTML source for an example login form.

Listing 23.3 Source Code for LoginForm.html
<html>
<body bgcolor="#ffffff">
<form action="j_security_check">
<table border="0">
<tr>
<td>Login</td>
<td><input type="text" name="j_username"></td>
</tr>
<tr>
<td>Password</td>
<td><input type="password" name="j_password"></td>
</tr>
</table>
<input type="submit" value="Login!">
</center>
</form>
</body>
</html>

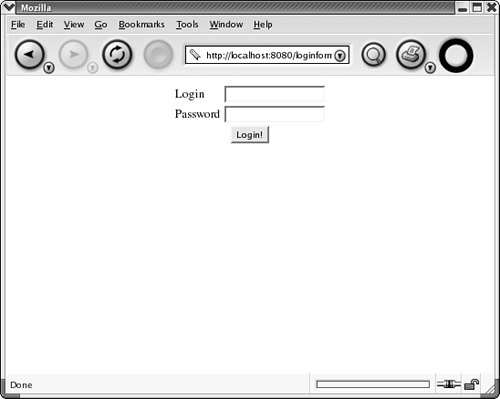

Figure 23.2 shows the example login form after the user has tried to access a page that requires authentication.

Figure 23.2. You can supply your own custom login form.

graphics/23fig02.gif

You can also create an error page that displays when there is an error in performing the authentication. Listing 23.4 shows a simple error page.

Listing 23.4 Source Code for LoginError.html
<html>
<body bgcolor="#ffffff">
<h1>Sorry</h1>
An error occurred during authorization.
<p>
</body>
</html>

Figure 23.3 shows the simple error page in action.

Figure 23.3. You can supply your own custom error page for handling authentication errors.

graphics/23fig03.gif

When you supply your own custom login form, you must supply the name of the login form and the name of the error form inside the <login-config> tag. The <form-login-page> tag specifies the location of the login page, whereas the <form-error-page> tag specifies the location of the error page. The <form-login-page> and <form-error-page> tags are contained within the <form-login-config> tag. Listing 23.5 shows an example web.xml file for authentication with a custom login form.

Listing 23.5 web.xml for loginform Application
<?xml version="1.0" encoding="ISO-8859-1"?>
<web-app xmlns="http://java.sun.com/xml/ns/j2ee"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee
    http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd"
    version="2.4">
    <display-name>LoginForm</display-name>
    <description>An application that makes use of a user-defined login form
    </description>
    <security-constraint>
        <web-resource-collection>
            <web-resource-name>Test</web-resource-name>
            <url-pattern>/*</url-pattern>
            <http-method>GET</http-method>
            <http-method>POST</http-method>
        </web-resource-collection>
        <user-data-constraint>
            <description>SSL not required</description>
            <transport-guarantee>NONE</transport-guarantee>
        </user-data-constraint>
        <auth-constraint>
            <description>Let only managers use this app</description>
            <role-name>manager</role-name>
        </auth-constraint>
    </security-constraint>
    <security-role>
        <description>The role of manager is one that can use our application.
        </description>
        <role-name>manager</role-name>
    </security-role>
    <login-config>
       <auth-method>FORM</auth-method>
       <form-login-config>
          <form-login-page>/LoginForm.html</form-login-page>
          <form-error-page>/LoginError.html</form-error-page>
       </form-login-config>
    </login-config>
</web-app>
