Recipe 3.10 Creating Image-Based Rollovers

Problem

You want image-based rollovers to replace text links.

Solution

First, wrap the text inside the anchor element in a span:

<a href="/" id="linkhome"><span>Homepage</span></a>

Next, instead of JavaScript, use the background-image property within the pseudo-class selectors :hover and :active to swap the images (see Figure 3-17):

a span {

 display: none;

}

a:link {

 display: block;

 width: 125px;

 height: 30px;

 background-image: url(btn.gif);

 background-repeat: no-repeat;

 background-position: top left;

}

a:link:hover {

 display: block;

 width: 125px;

 height: 30px;

 background-image: url(btn_roll.gif);

 background-repeat: no-repeat;

 background-position: top left;

}

a:link:active {

 display: block;

 width: 125px;

 height: 30px;

 background-image: url(btn_on.gif);

 background-repeat: no-repeat;

 background-position: top left;

}

Figure 3-17. The link with default, rollover, and active states
figs/csscb_0317.gif


Discussion

Replacing text with an image has five benefits. First, it separates the text from the presentation. The image that contains more elaborately formatted type is part of the presentation and therefore controlled by a style, while the content in the markup remains pure text. The second benefit is that an image heading can be modified across a whole site by one change of the style sheet. The third benefit is that this method works for alternative styles and style sheet switching.

With a span element inside an element, it is possible to hide HTML text and let a design element, such as a rollover image, show as a background image. The fourth benefit of this Solution is that if a user doesn't have CSS enabled in his browser, the default HTML text will display instead, sparing the user from having to download unneeded images. The fifth benefit is that the solution is cleaner and simpler than one that involves JavaScript.

You also can use this technique for page elements that don't require a rollover—for example, inserting an image to replace heading text to ensure a specific font that isn't commonly found on people's computers is displayed as an image. To do so, first set up the markup (see Figure 3-18):

<h2 id="headworld"><span>Hello, World!</span></h2>

Figure 3-18. Default rendering of heading
figs/csscb_0318.gif


Then set the following CSS rules to insert the image (see Figure 3-19):

h2#headworld span {

 display: none;

}

h2#headworld {

 width: 395px;

 height: 95px;

 background-image: url(heading.gif);

 background-repeat: no-repeat;

 background-position: top left;

}

Figure 3-19. The HTML text heading replaced by an image
figs/csscb_0319.gif


Many people refer to this method as the Fahrner Image Replacement (FIR) method, named after Todd Fahrner.

A drawback to this solution concerns screen readers, which are programs that make computers accessible to blind or severely visually impaired people. Certain screen readers won't read elements set to display: none. For more information, read "Facts and Opinion About Fahrner Image Replacement" at http://www.alistapart.com/articles/fir/.

An alternative to this solution is the Leahy-Langridge Image Replacement (LIR) method. Developed independently by Seamus Leahy and Stuart Langridge, the LIR method pushes the text out of view. A benefit for using this technique is that an extra span element isn't required in order to hide the text. For example, the HTML for a heading is basic:

 <h2 id="headworld">Hello, World!</h2>

The image for the heading comes through the background because the CSS rule sets the padding to the exact height of the image header. So, the height property is set to 0:

h2#headworld {

 /* The width of the image */

 width: 395px;

 /* The height of the image is the first padding value */

 padding: 95px 0 0 0;

 overflow: hidden;

 background-image: url("heading.gif");

 background-repeat: no-repeat;

 voice-family: "\"}\"";

 voice-family:inherit;

 height /**/: 95px;

 height: 0px !important;

}

The last four lines of the CSS rule are needed to work around Internet Explorer for Windows' poor box-model support, as explained in Recipe 10.2. Therefore, Internet Explorer for Windows gets a height value of 95 pixels, while the other browsers receive zero pixels.

Another method for creating an image-based rollover is performed by the background-position property. Known as the Pixy method, the technique involves attaching all three rollover states into one image and then moving the position of the image with the background-position property, as shown in Figure 3-20:

a span {

 display: none;

}

a:link, a:visited {

 display: block;

 width: 125px;

 height: 30px;

 background-image: url(btn_omni.gif);

 background-repeat: no-repeat;

 background-position: 0 0;

}

a:link:hover, a:visited:hover {

 display: block;

 width: 125px;

 height: 30px;

 background-image: url(btn_omni.gif);

 background-repeat: no-repeat;

 /* move the image 30 pixels up */

 background-position: 0 -30px;

}

a:link:active, a:visited:active  {

 display: block;

 width: 125px;

 height: 30px;

 background-image: url(btn_omni.gif);

 background-repeat: no-repeat;

 /* move the image 60 pixels up */

 background-position: 0 -60px;

}

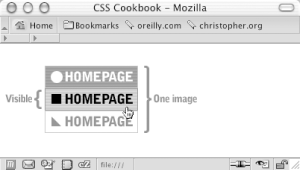

Figure 3-20. Showing a portion of the rollover image
figs/csscb_0320.gif


The drawback of almost all current image replacement techniques is that users see nothing if images are turned off, disabled, or simply don't load while the CSS is still supported. It is important to research and use the method that's best for your situation. Avoid replacing images in important titles.


See Also

Another demonstration of the LIR technique by Seamus P. H. Leahy at http://www.moronicbajebus.com/playground/cssplay/image-replacement/; an explanation on how to create faster CSS-enabled rollovers without having to preload images at http://wellstyled.com/css-nopreload-rollovers.html; a rundown of the FIR technique at http://www.stopdesign.com/also/articles/replace_text/.
